Introduction

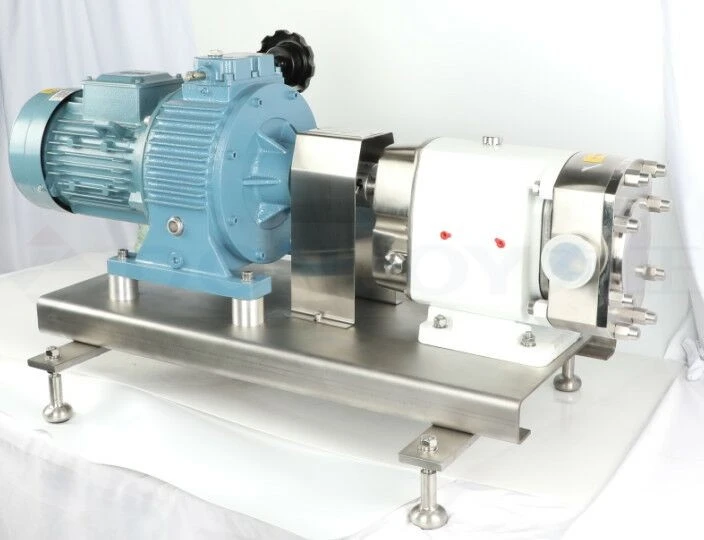

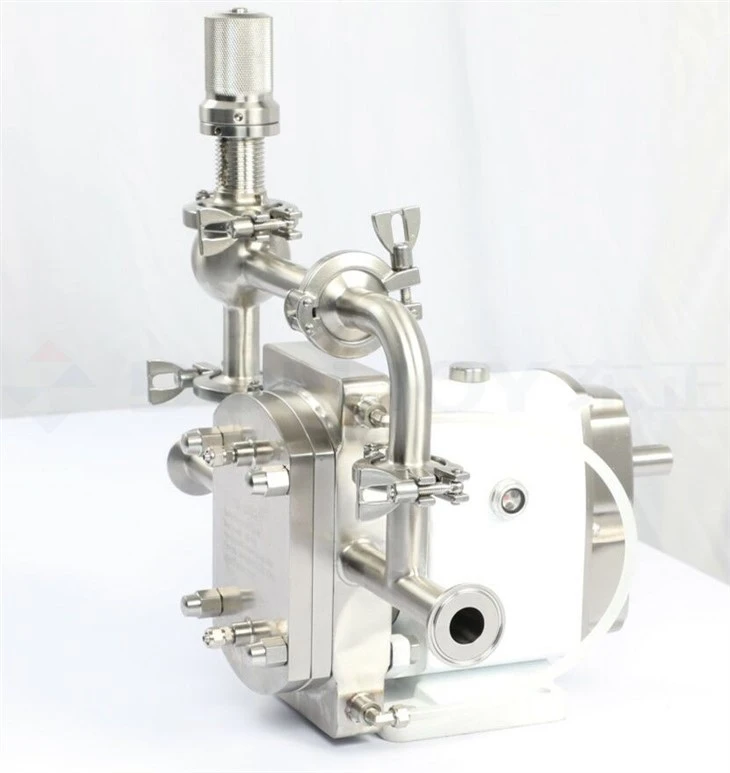

The Donjoy Sanitary Lobe Pump is a high-quality pump designed for use in the food, beverage, pharmaceutical, and other similar industries. Made with premium materials and top-of-the-line technology, it provides a reliable and efficient way of transferring various types of liquids with the highest levels of hygiene and safety.
Features
One of the most notable features of the Donjoy Sanitary Lobe Pump is its construction. It is made of 316L stainless steel, which provides excellent durability and resistance to corrosion, making it ideal for use in demanding applications. The pump is also designed in a way that makes it easy to assemble and disassemble, which further adds to its convenience and versatility.
The pump's design is also optimized for hygienic applications. It features a smooth, crevice-free surface finish that minimizes the risk of bacterial growth, ensuring the highest level of hygiene in your production process. The pump's gentle pulsation also reduces the risk of product damage, making it ideal for pumping shear-sensitive and viscous liquids.
Another feature that sets the Donjoy Sanitary Lobe Pump apart is its ease of maintenance. It features a bi-wing rotor design that makes it easy to inspect and clean the pump without the need for special tools or equipment.
Benefits
The Donjoy Sanitary Lobe Pump comes with several benefits that make it an excellent choice for merchants in the food, beverage, pharmaceuticals, and other similar industries. These benefits include:
1. Reliable and efficient: The Donjoy Sanitary Lobe Pump is designed to provide reliable and efficient performance, making it an ideal choice for applications that require high levels of precision and consistency.
2. Hygienic: The pump's design is optimized for hygienic applications, ensuring the highest levels of cleanliness and safety in your production process.
3. Easy to maintain: The pump's bi-wing rotor design makes it easy to inspect and clean, reducing maintenance time and costs.
4. Versatile: The Donjoy Sanitary Lobe Pump is suitable for a wide range of liquids, including shear-sensitive and high-viscosity liquids, making it a versatile choice for various industries.
5. Long-lasting: The pump's construction is made of high-quality materials that provide excellent durability and resistance to corrosion, ensuring a long service life.
Applications
The Donjoy Sanitary Lobe Pump is suitable for a wide range of applications in the food, beverage, pharmaceutical, and other similar industries. Some examples include:
1. Dairy products: The pump is ideal for pumping milk, cream, yogurt, and other similar products that require gentle handling.
2. Beverages: The pump is suitable for transferring fruit juices, soft drinks, beer, and wine, among others.
3. Pharmaceuticals: The pump can be used for transferring various pharmaceutical products, including syrups, suspensions, and creams.
4. Cosmetics: The pump can be used for transferring various cosmetic products, including lotions, creams, and gels.
Conclusion
The Donjoy Sanitary Lobe Pump is a high-quality pump designed to provide reliable and efficient performance in a hygienic environment. Its strong construction, ease of maintenance, and versatility make it an excellent choice for merchants in the food, beverage, pharmaceutical, and other similar industries. With its long-lasting service life, the Donjoy Sanitary Lobe Pump is a solid investment that can provide significant returns for your business.
Donjoy Sanitary Lobe Pump Details
Specification
| Maximum Flow Rate |
60 m³/h |
|---|---|
| Maximum pressure |
15bar |
| Max speed |
750 rpm |
| Body Material |
AISI 304 (1.4301), AISI 316L (1.4404) |
| Transfer Type |
Horizontal Type (TUL) & Vertical Type (TUR) |
| Mechanical Seal |
SIC/SIC/FKM(Single seal).C/SIC/C/SIC/FKM(Double seal) |
| Motor Power Supply |
0.75KW-22KW wide voltage and frequency |
| Motor Brand |
ABB , Simens,Chinese famous brand,standard IEC |
| Inlet & Outlet |
1"-4" (DN25-DN100),weld/union/male thread/female thread/flange |
| Max Temperature |
150℃/302°F |
| Surface treatment |
Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification |
US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009 |
Donjoy sanitary Lobe Pump
Donjoy Sanitary Lobe Pump is a form of positive displacement pump. It is composed of a rotating rotor and a stationary pump body. It has no suction and discharge valves. It changes the working volume through the relative movement between the rotor and the pump body, and discharges the liquid through the extrusion of the rotating rotor, while leaving the liquid on the other side. Out of the space, a low pressure is formed, so that the liquid is continuously sucked in.A rotary lobe pump is a form of positive displacement pump. It is composed of a rotating rotor and a stationary pump body. It has no suction and discharge valves. It changes the working volume through the relative movement between the rotor and the pump body, and discharges the liquid through the extrusion of the rotating rotor, while leaving the liquid on the other side. Out of the space, a low pressure is formed, so that the liquid is continuously sucked in.
Sanitary Lobe Pump TUL/R Description
The TUL/R lobe pump have the advantage of low maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standardlow maintenance, cost-effective. Hygienic design complied with ASME BPE, EHEDG standards, US 3-A, FDA hygienic standard.This pump is suitable for food processing, dairy, beverage, and pharmaceutical industries…
Donjoy Sanitary Pump Selection Table
Donjoy Sanitary Lobe Pump Configuration
Donjoy TUL/TUR Series Sanitary Lobe Pump Curve
Hygienic Pump package
