Introduction:
Centrifugal pumps have become an essential tool for various industries such as agriculture, wastewater treatment, power plants, and mining. With increasing demand for effective and efficient pumping solutions, manufacturers have developed large flow centrifugal pumps. These pumps are designed to offer high capacity pumping while delivering exceptional performance. In this product introduction, we will explore various aspects of large flow centrifugal pumps, their features, benefits, and applications.
Features:
Large flow centrifugal pumps are designed to handle large volumes of water or other fluids in a short period. These pumps are capable of delivering high flow rates with minimal energy input. They feature an impeller that rotates at high speeds, creating a centrifugal force that forces the fluid to the pump's outer edge, where it is discharged. Some of the critical features of large flow centrifugal pumps include:
1. High Flow Rates: These pumps can handle a wide range of flow rates, usually ranging from 50 to 8000 cubic meters per hour.
2. Low Power Consumption: Large flow centrifugal pumps are energy-efficient meaning they consume less power for the volume of water they move.
3. Large Impeller Diameter: The impeller in these pumps has a large diameter, which allows for more water to flow through the pump.
4. Durable Construction: Large flow centrifugal pumps are manufactured using robust materials such as cast iron, stainless steel, and bronze.
5. Easy Installation and Maintenance: These pumps are easy to install and maintain since they have few moving parts, and their design is simple.
Benefits:
There are several benefits to using a large flow centrifugal pump in various industries. Here are some of the benefits of this type of pump:
1. High Efficiency: Large flow centrifugal pumps work at high efficiency, which means they can move large volumes of water with proper energy consumption.
2. Reliability: Large flow centrifugal pumps are reliable since they have fewer moving parts and usually have a longer lifespan than other forms of pumping equipment.
3. Easy Maintenance: Large flow centrifugal pumps are easy to maintain since they have few components.
4. Cost-Effective Solution: Investing in a large flow centrifugal pump is cost-effective since it offers reliable performance, high efficiency, and reduced energy consumption.
Applications:
Large flow centrifugal pumps can be used in various industries for a range of applications. Here are some of the primary applications of this type of pump:
1. Agriculture: Large flow centrifugal pumps are predominantly used in agricultural settings to water large crop fields.
2. Fire Fighting: These pumps can deliver high-pressure water suitable for extinguishing fires in urban or rural areas.
3. Flood Control: Large flow centrifugal pumps can pump water, which helps with flood control in low-lying areas.
4. Mining: These pumps are used to transport water in mines, facilitating mining operations.
5. Construction: Large flow centrifugal pumps are used in construction sites to deliver concrete to building sites.
Conclusion:
Large flow centrifugal pumps have become an essential tool for industrial applications that require high flow rates. Their versatility, reliability, and efficiency make them ideal for use in various sectors such as agriculture, mining, and construction. Investing in a large flow centrifugal pump is an excellent way of achieving both reliability and efficient water transfer. These pumps are designed to deliver outstanding performance, and their low power consumption makes them a cost-effective solution. Choose a large flow centrifugal pump that suits your specific needs, and you can be confident that it will deliver exceptional performance, reliability, and efficiency.
Description

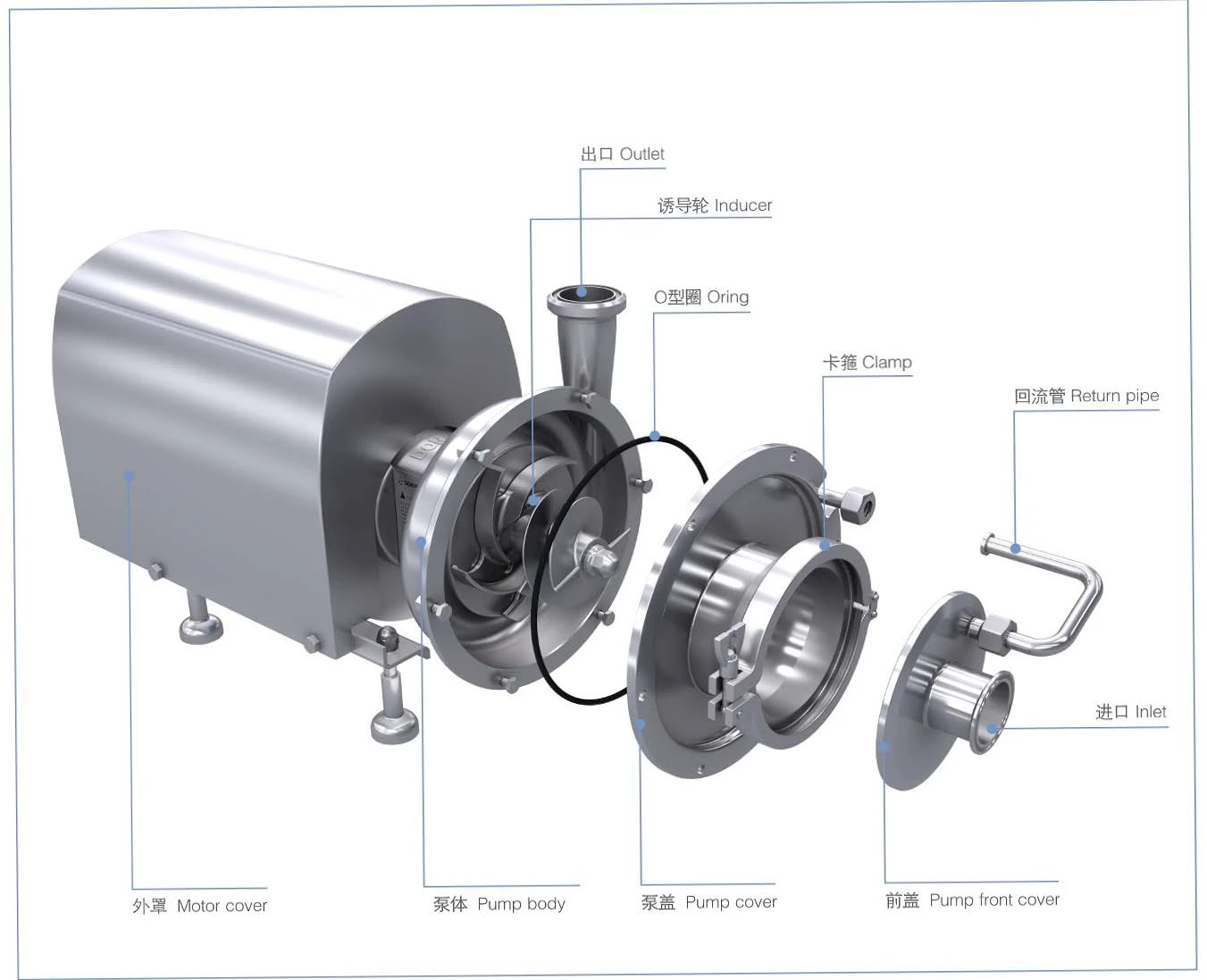

When the centrifugal pump is working, the liquid will fill the pump casing. The high-speed rotation of the impeller will generate strong centrifugal force, which will drive the high rotation of the liquid. This Large Flow Centrifugal Pump is a self-priming centrifugal pump, which can act as self-priming reflux in CIP system. The pump has a large displacement, so the efficiency is very high, but at the same time, the noise when it is running is very low. The pump is designed with a front impeller to reduce the necessary cavitation allowance. This product is suitable for CIP cleaning and SIP sterilization in food processing, pharmaceutical and daily chemical industries. We sincerely serve customers, aiming to bring the best quality products to our customers. If you have any questions, you can consult us.
Features
1. High efficiency and energy saving: the Large Flow Centrifugal Pump has an efficient hydraulic profile and high working efficiency.
2. Convenient installation and maintenance: the vertical pipeline structure is adopted, and the inlet and outlet of the pump can be installed in any position and direction of the pipeline like a valve, which is very convenient for installation and maintenance.
3. Stainless steel shaft sleeve: the mechanical seal position of the shaft is relatively easy to be rusted. Once the direct coupled pump shaft is rusted, it is easy to cause mechanical seal failure. The stainless steel shaft sleeve is inserted to avoid corrosion, improve the service life of the shaft and reduce the operation and maintenance cost.
Technical Data:
● Flow rate: 3-50m³ / h
● Max head: 64m
● Inlet/out size: 1.5”-3”
● Material: SS304/SS316L
● Mechanical seal: single/double mechanical seal
● Connection: flange/thread/union/clamp/aseptic flange
● Power: 1.5-18.5kw
● Standard: 3A, DIN, SMS, ISO/IDF, RJT
● Temperature : -20-140℃
● Surface treatment: Ra≤0.6μm; Ra≤0.4μm
● Certificate: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No. 705201402401-00
Our Service
● Payment term: T/T, by alibaba(credit card available), L/C
● Package: Plywood case or customized(as per the request of customers)
● Delivery time: normally around 20 days
● Transport: by air(DHL/TNT/UPS/FedEx); by sea
Download
● Drawing
